Motor Minesweeper's were purpose built, wooden, shallow draft, minesweepers with both SA and LL sweeping capabilities. SA is Sweep Acoustic, a device similar to a Kanga Hammer which makes a loud thumping noise which explodes acoustic mines. LL (double L) is a pair of electric cables which are towed parallel to each other on floats and emit a strong electric pulse which generates a magnetic field which detonates magnetic mines.
Four Hundred and two Motor Minesweeper were built for the Royal Navy between 1940 and 1945.
Admiralty type; 1 to 118 and 123 to 313
Displacement 165 Tons
Length: 105 Feet (32 metres)
Beam: 23 Feet (7 metres)
Draft: 9 feet 6 inches. (2.9 Metres)
Engine: Diesel. 500 BHP.
Speed: 12.65 Miles per hour. (11 knots)
Complement: 20 Officers and men.
Armament: Two 20 mm Anti-aircraft guns
Two machine guns.
MMS 1078 was built by Frank Curtis, Par.

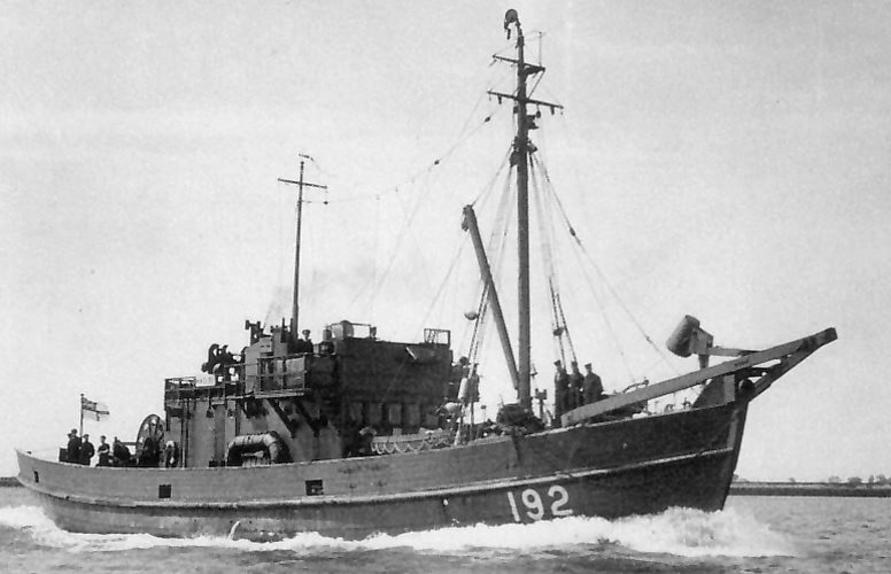

Motor Minesweeper MMS 1078 would have looked the same as her sister ship, MMS 192. Note, the Acoustic “hammer” on the bow in the up position used to sweep for acoustic mines and the drum on the stern for the LL cables used to detonate magnetic mines.
